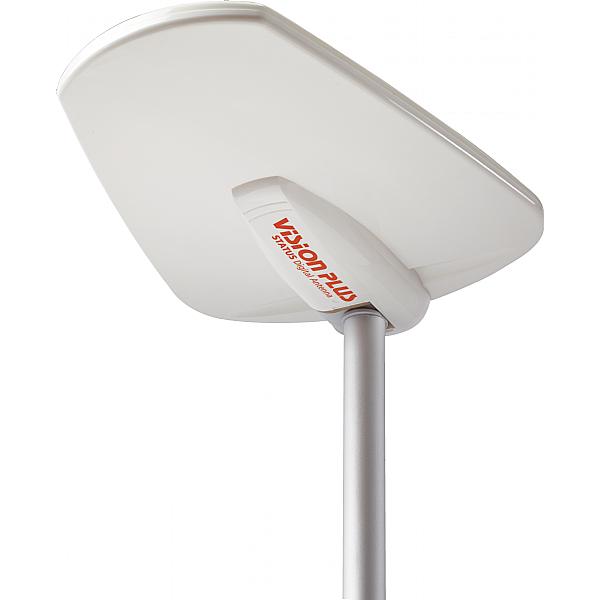

Vision Plus Status 570 Directional Digital TV & Radio FM, DAB Antenna System

£140.00

Part Number: 04-3070

New features:

  • Unique integrated TV Signal Finder
  • Horizontal & Vertical Polarisation Indicator
  • Low Profile Roof Assembly
  • DAB & FM Radio Reception
  • Fixed FM radio antennas

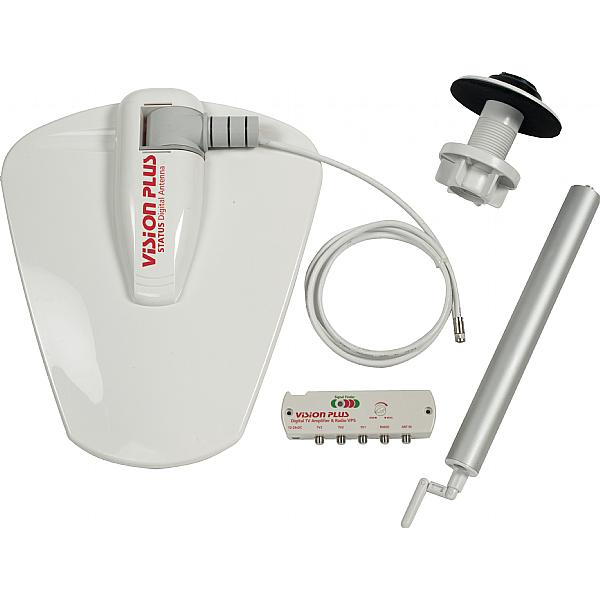

At the heart of this new antenna system is the Vision Plus VP5 Digital TV Amplifier with unique integral Signal Finder.

With its neat, slim-line design, the VP5 offers the latest in TV / Radio reception technology and features:

  • Slim-line compact design
  • Digital TV, DAB and FM Radio reception

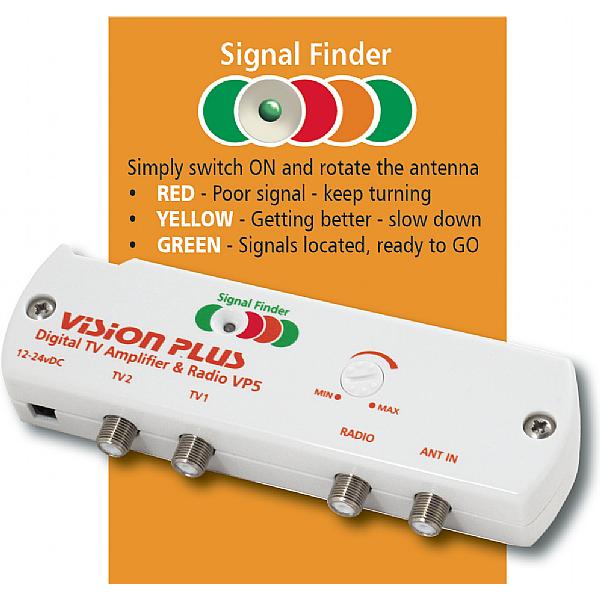

  • Dedicated TV Transmitter locator – Signal Finder
  • LED light power indicator with red, yellow and green colours to indicate signal strength
  • Variable Gain Control for strong and weak signal areas
  • 3 TV Connections and 1 dedicated Radio connection
  • 12 – 24V DC Power Input connection
  • Antenna IN connection
  • On / Off Power switch
  • 3 year guarantee

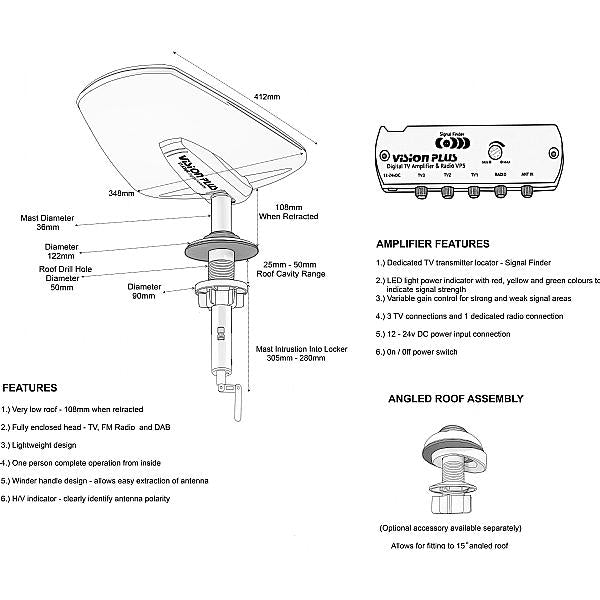

Dimensions

  • Mast Length 330mm

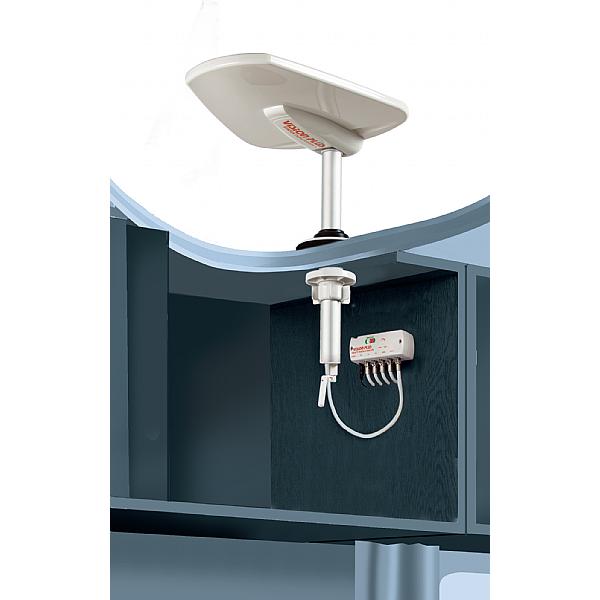

  • Mast intrusion into locker 305-280mm
  • Antenna dome Installed - Length 412mm - Width 348mm - Height 108mm
  • Mounting Foot & Gaiter - Diameter 122mm - Height 35mm - Roof cavity range 25-50mm
